intel aero

rating
  • ¥10,330.00

(无人机不包含电池)Aero四轴无人机开发平台是基于英特尔® Aero Compute Board 构建的完全装配好的四轴飞行器。 这个开发平台面向开发人员、研究人员和无人驾驶飞行器发烧友,帮助他们迅速验证应用程序。 配备英特尔® 实感™ 技术运行于开源 Linux* 操作系统之上用 Dr..

(无人机不包含电池)



Aero四轴无人机开发平台是基于英特尔® Aero Compute Board 构建的完全装配好的四轴飞行器。 这个开发平台面向开发人员、研究人员和无人驾驶飞行器发烧友,帮助他们迅速验证应用程序。

  • 配备英特尔® 实感™ 技术
  • 运行于开源 Linux* 操作系统之上
  • 用 Dronecode PX4* 软件预编程的飞行控制器
  • 支持针对空域服务的 AirMap* SDK

Aero四轴无人机开发平台包括:

  • 英特尔Intel Aero主板
  • Intel® Atom™ x7-Z8750 processor
  • 4 GB LPDDR3-1600
  • 32 GB eMMC
  • MicroSD* memory card slot
  • M.2 connector 1 lane PCIe for SSD
  • Intel® Dual Band Wireless-AC 8260
  • USB 3.0 OTG
  • Reprogrammable I/O via Altera® Max® 10 FPGA
  • 8MP RGB camera (front-facing) – one of the 3 camera modules included with the Aero Vision Accessory Kit
  • VGA camera, global shutter, monochrome (down-facing)
  • Open-source embedded Linux*, Yocto Project
  • Insyde Software InsydeH2O* UEFI BIOS optimized for the Intel® Aero Platform for UAVs.  More about InsydeH20*
  • Intel® RealSense™ camera (R200)
  • Intel® Aero Flight Controller with Dronecode* PX4* autopilot
  • STM32* microcontroller
  • Temperature compensated: 6 DoF IMU, magnetometer, and altitude sensors
  • Connected to the Aero Compute board over HSUART and communicates using MAVLink* protocol

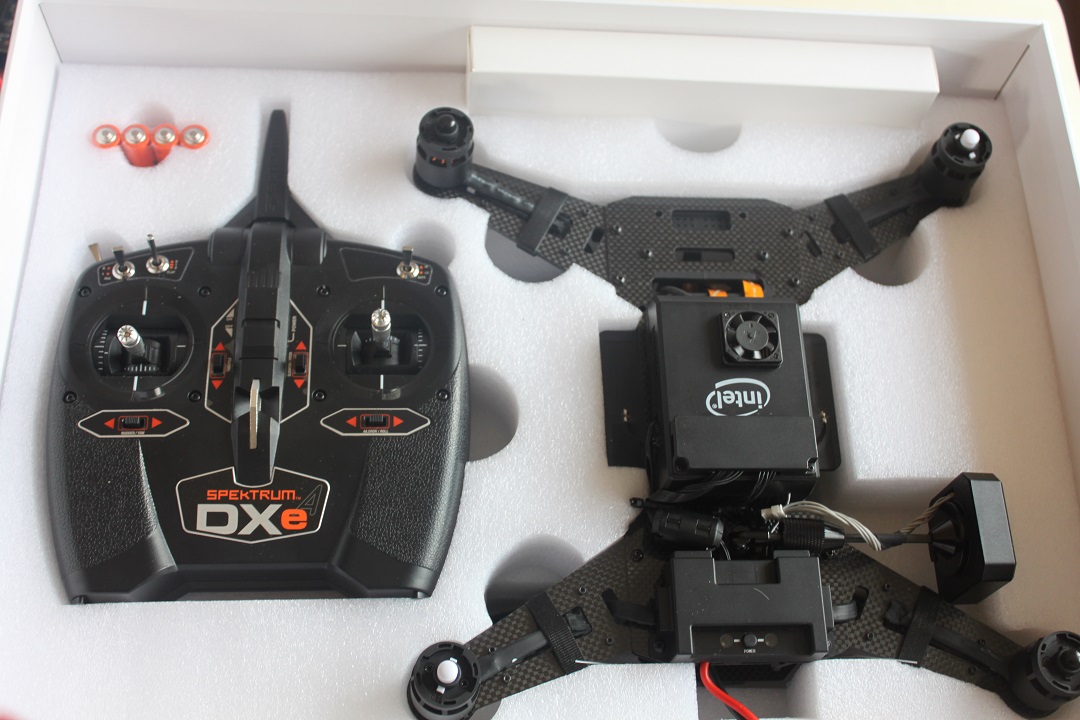

  • Pre-assembled quadcopter
  • Carbon fiber airframe
  • GPS and compass
  • Power distribution board
  • 4 electronic speed controllers
  • 4 motors
  • 8 snap-on propellers
  • Spektrum* DSMX* Serial Receiver
  • Spektrum DXe Transmitter (2.4GHz DSMX)

技术规格:


Dimensions: hub-to-hub

360 mm

Drone Height - base to top of GPS antenna

222 mm

Propeller (Yuneec Typhoon H) – Length

230 mm

Weight of Drone – basic configuration without battery

865 g

Gross Weight (max) – max takeoff weight

1900 g

Flight Time (max) – with 4S, 4000mAh battery, hovering, no added payload

20 min

Maximum Sustained Wind

15 knots

Maximum Control Distance with supplied remote control

300 m

Airspeed (max)

15 m/s

Altitude of Operation (max) – height above sea level

4500 m

Flight Height Limit (max) – height Above Ground Level (AGL)

122 m

Outside Air Temperature (min / max)

0 C / +45 C

ESC and Motor - designed and manufactured by Yuneec, modified for
Intel® Aero

      - Input control interface

      - Input voltage range





UART

11.1 - 14.8V






相关开发资料链接

源码
https://github.com/intel-aero/meta-intel-aero
论坛:
https://communities.intel.com/community/tech/intel-aero
软件下载
https://downloadcenter.intel.com/download/26335/UAV-installation-files-for-Intel-Aero-Platform

 备注:
由于无人机的特殊性, 产品一经售出,不提供售后服务,不支持七天无理由退货。 敬请谅解。
